- Click image above for full size drawing

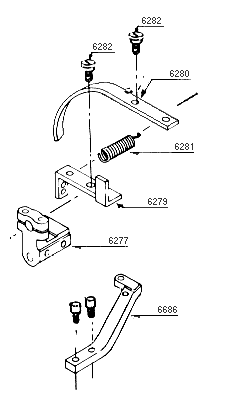

Nos. 5, 6, 7 and 18 band saw swages are available with automatic trip assembly in place of pistol grip, at no extra cost.
Part No. 5352-R Air Valve Repair Kit |
||
| Item | Part No. | Description |
| 1 | 8563-C006 | O-Ring, Valve Stem |
| 2 | 6145 | Spring, Valve Slide |
| 3 | 6146 | Spring, Valve Stem |
| 4 | 6222 | Stem, Valve |
| 5 | 6231 | Slide, Valve |
| 6 | 6642 | Gasket, Valve Package Gland |
| 7 | 7354 | Gasket, Rear Head |
| 8 | 7355 | Gasket, Valve Chest |
| 9 | 7765 | Packaging Gland |
