No. 5, 6, 7, and 18 Band Saw Swage

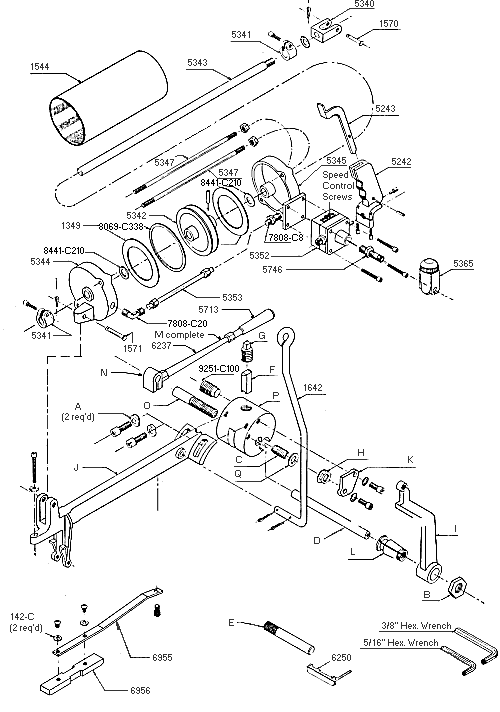

No. 5, 6, 7, and 18 Swage Drawing

The following part numbers differ depending on the swage:
NAME	PART NO.
A. RIBBED WASHER FOR FRONT GUIDE ARM (2 req.)
Nos. 5, 6, 18 Swage	7
No. 7 Swage	27
B. NUT FOR HOLDER FOR DIE
Nos. 5, 18 Swage	38A
Nos. 6, 7 Swage	28A
C. CLAMP SCREW (Stationary)
Nos. 5, 6, 18 Swage	45
No. 7 Swage	280C
D. ECCENTRIC DIE
No. 5 Swage
Short Bite	238
Long Bite	78
Extra-Short Bite	110
No. 6 Swage
Short Bite	77
Long Bite	278
Extra-Short Bite	224
No. 7 Swage
Short Bite	76
Long Bite	279
Extra-Short Bite	N/A
No. 18 Swage
Short Bite	250
Long Bite	79
Extra-Short Bite	164
E. ANVIL SETTING GAUGE
No. 5 Swage
Short Bite	238G
Long Bite	78G
Extra-Short Bite	110G
No. 6 Swage
Short Bite	77G
Long Bite	278G
Extra-Short Bite	224G
No. 7 Swage
Short Bite	76G
Long Bite	279G
Extra-Short Bite	N/A
No. 18 Swage
Short Bite	250G
Long Bite	79G
Extra-Short Bite	164G

F. ANVIL
Nos. 5, 6, 18 Swage	90
No. 7 Swage	89
CARBIDE TIPPED ANVIL
Nos. 5, 6, 18 Swage	90C
No. 7 Swage	89C
G. TOP SCREW FOR ANVIL
Nos. 5, 6, 18 Swage	113
No. 7 Swage	109
H. NUT FOR CLAMP SCREW (Stationary) with washer
Nos. 5, 6, 18 Swage	218-SET
No. 7 Swage	300-SET
I. LEVER FOR DIE
Nos. 5, 18 Swage	1588
Nos. 6, 7 Swage	1535
J. FRONT GUIDE ARM
Nos. 5, 6, 18 Swage	1582
No. 7 Swage	1530
K. DIE LOCK
Nos. 5, 18 Swage	1587
No. 6 Swage	1585
No. 7 Swage	1540
L. HOLDER FOR DIE WITH NUT
No. 5 Swage	38-SET
No. 6 Swage	1586-SET
No. 7 Swage	28-SET
No. 18 Swage	6893-SET
M. LEVER FOR CLAMP SCREW (Complete)
Nos. 5, 6, 18 Swage	2447
No. 7 Swage	1391
N. SPLIT CLAMPING HEAD FOR CLAMP SCREW LEVER
Nos. 5, 6, 18 Swage	2447C
No. 7 Swage	1391C
O. CLAMP SCREW (Moveable)
Nos. 5, 6, 18 Swage	2454
No. 7 Swage	56
CARBIDE TIPPED CLAMP SCREW (Moveable)
Nos. 5, 6, 18 Swage	2454C
No. 7 Swage	56C
P. HEAD
No. 5 Swage	2732
No. 6 Swage	2733
No. 7 Swage	1270
No. 18 Swage	6892
Q. WASHER FOR CLAMP SCREW (Stationary)
Nos. 5, 6, 18 Swage	4072
No. 7 Swage	4073


The following part numbers are identical for Nos. 5, 6, 7, and 18 Armstrong Air Swages:
Fiber Washer (2 req.)	142C
Swage Balancing Rod	1542
1/2" NF Socket Head Side Anvil Screw	4864
Plastic Handle	5713
Steel Shank only for Clamp Screw Lever	6237
Spring for Front Guide Shoe	6955
Front Guide Shoe	6956

Model 53 AIR CYLINDER ASSEMBLY (Can be mounted on old style air swages in place of old style air cylinder unit.)
Cylinder Head Gasket (2 req.)	1349
Cylinder	1544
Clevis Pin	1570
Connector Pin	1571
Handle	5242
Trigger	5243
Clevis	5340
Stop Collar (2 req.)	5341
Piston and Rod Assembly	5342A
Cylinder Head (pivot)	5344
Cylinder Head (valve)	5345
Tie Stud (4 req.)	5347
Straight Fitting	5348
Elbow	5349
Piston "O" Ring	8069-C338
Cylinder Head "O" Ring (2 req.)	8441-C210
Air Valve	5352
Repair Kit for Air Valve (Repair kit consists of all items marked with *)	5352-R
Air Cylinder Tubing	5353
Lubricator	5365
Pipe Reducer	5746
"O" Ring for Air Valve	5962*
Valve Slide Spring	6145*
Valve Stem Spring	6146*
Valve Stem	6222*
Nylon Slide Valve	6231*
Socket Handle Wrench Set	6250
Packing Gland Gasket	6642*
Optional Mufflers for 5352 Valve (2 req.)	7334
Rear Head Gasket	7354*
Valve Chest Gasket	7355*
Packing Gasket	7765*
Air Cylinder Assy. Complete (hand trigger)	5244-C1
Air Cylinder Assy. Complete (auto trigger)	5244-C2
