Armstrong's new CNC circular saw Topper/Facer is designed to grind the tops and faces of triple chip, variable pitch and alternating top or face . An industrial-grade Pentium� computer and touch screen interface give the operator complete control of all functions. Grinding parameters for up to 14 saws, 6" (150 mm) to 36" (915 mm) diameter, can be stored in memory for instant set-ups.
A 1.5 hp (1 kW) motor powers a CBN or diamond wheel while the 2,200 lbs (1,000 Kgs) of machine mass assures stability even in less-than-ideal environments. The number of grinding passes, the amount of stock removed on each pass, and the wheel feed rate are just a few of the choices available to the operator. Ball screws, brushless servo motors, and replaceable slides assure years of precision performance.
|

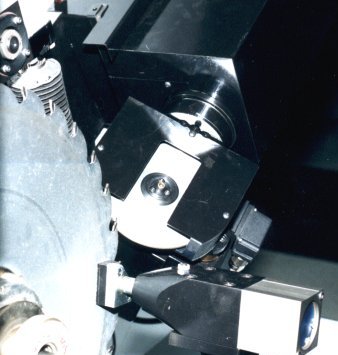

| Armstrong's new CNC sharpener grinds the faces or tops in a single pass, including straight tops, alternating bevel tops and triple chip teeth |
Safety and easy maintenance were major considerations in the design of this new sharpener. The sharpener is totally enclosed to isolate grinding mist and noise from the operator. An active separation system removes particulates from the coolant. On-board diagnostics are backed up with the local service and readily available parts you expect from Armstrong.
|

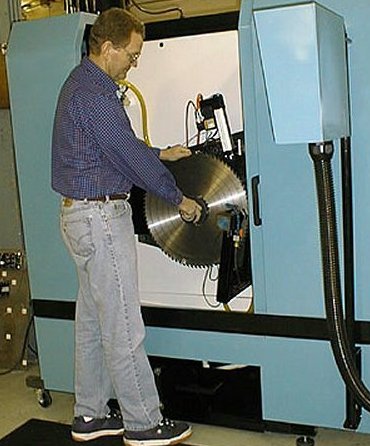

| Settings are made through a touch screen control panel. A built-in memory recalls the setting for up to 14 different saw configurations. |
- Pentium 233 MMX P.C. control
- 4 axis brush less servo system for long life and precision control
- Touch Screen for easy operation
- Stored memory for 20 different preset saw configurations easily accessed for quick set up.
- 20 different tooth patterns with up to 10 teeth in a pattern for custom and specialty saws
- Total control of stock removal, Tooth configuration, wheel lift off, and grinding depth and speed.
- Totally enclosed, flood cooled (15 gpm)
- Centrifugal hourglass Separator system, with 5 micron filter bag.
- True circular feed, feed finger travels in the same radius as the saw so it will not slide up or down the tooth as it indexes.
- No need to adjust the faceplate for saw thickness. Simply enter the tooth thickness and the machine automatically calculates the correct offsets.
- Grinding wheel motor automatically reverses direction for right and left-hand teeth.
- Multiple pass per tooth capability.
- Optional mist removal system
Specifications:
- Saw Dia.: 6" (15 cm) to 36" (91.5 cm)
- Saw Eye Dia.: 5/8" to 9-5/8"
- Tooth Space .3.75" to .5"
- Max tooth width: .300"
- Max Carbide length: 9/16"
- Plate thickness: .035" to .180"
- Hook Angle Range: -20 to +40
- Back Angle Range: 5 to 20
- Top Bevel Angle Range: 0 to 45
- Face Bevel Angle Range: 0 to 15
- Grinding Wheel Dia.: 6"
- Grinding Wheel Speed: 7158 SFPM @ 6" diameter wheel
- Motor HP: 1-1/2
- Poly-V-Belt Drive
- Air Requirements 80 PSI
- Overall Dimensions: 73" X 81" X 44"
