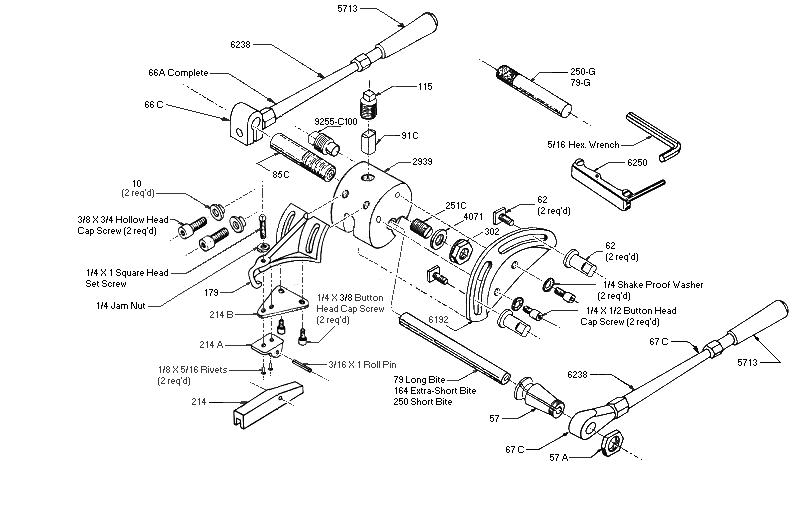

No. 8 and 8-G Hand Swage (1/2" Die) For Shingle and Gang Saws
Part No. Name
10 Ribbed Washer for 179 (2 req.)
57-SET Holder for Die with Nut 57A
57A Nut for 57
62 Stud for Stop Bracket (2 req.)
66A Lever for Clamp Screw 85B, complete
66C Split Clamping Head only for Clamp Screw Lever
67 Lever for Die , complete
67C Clamping Socket only for Die Lever
79 Eccentric die (Long Bite)
79-G Anvil setting gauge for 79
85-B Clamp Screw (Moveable)
85-C Carbide Tipped Clamp Screw (Moveable)
91 Anvil
91C Carbide Tipped Anvil
115 Top Screw for Anvil
164 Eccentric die (Extra-Short Bite)
164G Anvil setting gauge for 164
179 Front Guide Arm
214 Front Guide Shoe complete with Spring and Saddle
214A Saddle only for 214
214B Spring only for 214
250 Eccentric die (Short Bite)
250-G Anvil setting gauge for 250 and 164
251 Clamp Screw (Stationary)
251C Carbide Tipped Clamp Screw (Sta.)
302-SET Nut for 251 with Washer 4071
2939 Head
4071 Washer for 251
4701 Stop Bracket
9255-C100 5/16" NF Socket Head Side Anvil screw
5713 Plastic Handle (2 req.)
6238 Steel Shank only for Levers (2 req.)
6250 Socket Head Wrench Set
