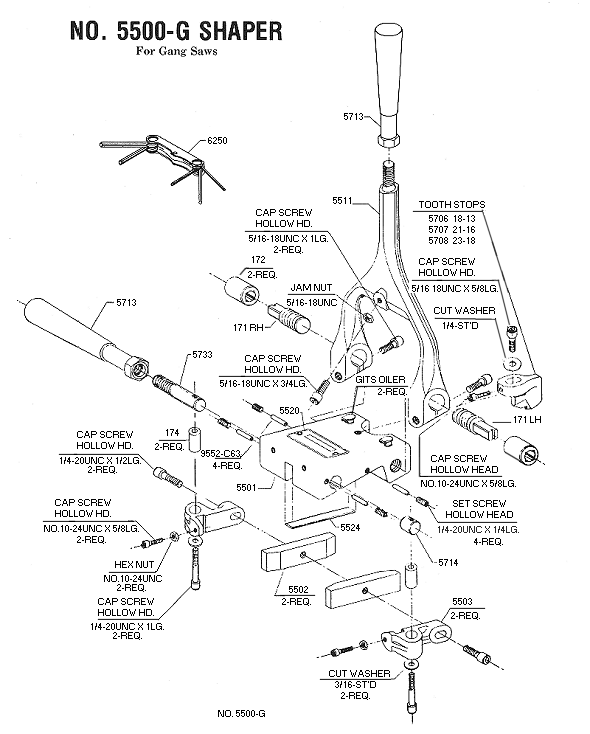

No. 5500-G SHAPER PARTS LIST
No. 5500-G Shaper
Part No. Name
74 Saw guides (pr.)
171-L Clamp screws, left hand
171-R Clamp screws, right hand
172 Bushing for handle (2 req.)
174 Bushing for hinge (2 req.)
5501 Head
5502 Side dies (2 req.)
5502C Carbide tipped side dies (2 req.) (OPTIONAL at extra cost)
5503 Hinge (2 req.)
5511 Clamping handle complete
5520 Name plate
5524 Wear strip
5706 Tooth stop, 18-13
5707 Tooth stop, 21-16
5708 Tooth stop, 23-18
5713 Plastic handle
5714 Short round nut (2 req.)
9552-C63 Wearstrip pin (4 req.)
5733 Long round nut
6250 Socket head wrench set
