No. 4 BSS - Rocker Arm Assembly

Rocker Arm Assembly

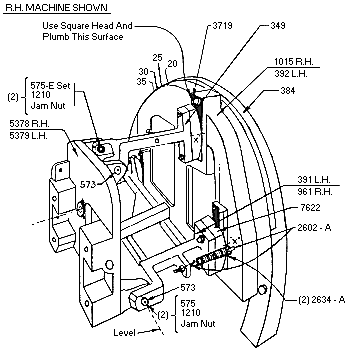

575-E, 1210, 5378, 5379, 573, 575, 2634-A, 7622, 961, 391, 384, 392, 1015, 3719, 20, 25, 30, 35

UPPER ROCKER ARMS (Part No. 349) consists of 1 Part No. 7621 shoe and 1 Part. No. 7625 frame.

LOWER ROCKER ARMS (Part No. 391 for left hand or 961 for right hand) consists of 1 Part No. 7621 shoe, 1 Part No. 7622 shoe and 1 Part No. 7624 right or left frame.

ALSO AVAILABLE: Complete rocker arm assembly consisting of all items shown in the drawing above except Part No. 384 and 5378/ 5379. Specify assembly No. 4001 for right hand or Part No. 4002 for left hand when ordering.

If complete rocker arms are to be supplied, both upper and lower arms must be ordered to insure proper fit.
