| The

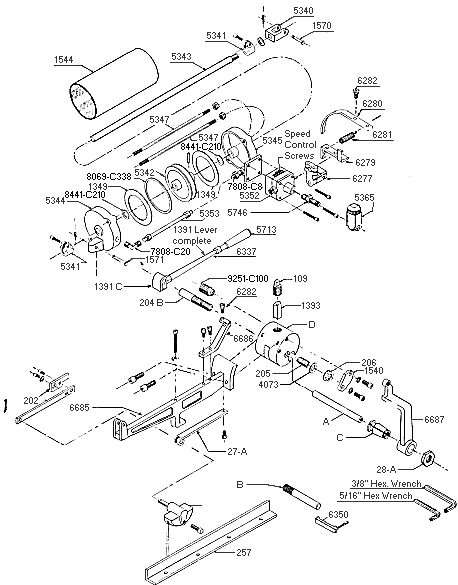

following part numbers are identical for Armstrong Nos. 16 and 17 Air Swages: |
| Nut for holder for die |
28A |
| Top Screw for Anvil |
109 |
| Spring for 6685 |
127A |
| Setting Gauge with Head 202A |
202 |
| Clamp Screw (movable) |
204C |
| Carbide Tipped Clamp Screw (movable) |
204C |
| Clamp Screw (stationary) |
205 |
| Carbide Tipped Clamp Screw (stationary) |
205C |
| Nut for 205 with Washer 4073 |
206-SET |
| Controlling Rider |
256 |
| Guide Rail (one 20" section) |
257 |
| Lever for Clamp Screw 204B, complete |
1391 |
| Split Clamping Head for Clamp Screw Lever |
1391C |
| Anvil |
1393 |
| Carbide Tipped Anvil |
1393C |
| Die Lock |
1540 |
| Washer for 205 |
4073 |
| 1/2" NF Socket Head Side Anvil Screw |
4864 |
| Plastic Handle |
5713 |
| Steel Shank for Clamp Screw Lever |
6237 |
| Bench Arm |
6685 |
| Lever for Die |
6687 |
| |
|
| Model 53
AIR CYLINDER ASSEMBLY (Can be mounted on old style air swages in place of old style air
cylinder unit.) |
| Cylinder Head Gasket (2 req.) |
1349 |
| Cylinder |
1544 |
| Clevis Pin |
1570 |
| Connector Pin |
1571 |
| Handle |
5242 |
| Trigger |
5243 |
| Clevis |
5340 |
| Stop Collar (2 req.) |
5341 |
| Piston and Rod Assembly |
5342A |
| Cylinder Head (pivot) |
5344 |
| Cylinder Head (valve) |
5345 |
| Tie Stud (4 req.) |
5347 |
| Straight Fitting |
5348 |
| Elbow |
5349 |
| Piston "O" Ring |
8069-C338 |
| Cylinder Head "O" Ring (2 req.) |
8441-C210 |
| Air Valve |
5352 |
- Repair Kit for Air Valve
- (Repair kit consists of all items marked with *)
|
5352-R |
| Air Cylinder Tubing |
5353 |
| Lubricator |
5365 |
| Pipe Reducer |
5746 |
| "O" Ring for Air Valve |
5962* |
| Valve Slide Spring |
6145* |
| Valve Stem Spring |
6146* |
| Valve Stem |
6222* |
| Nylon Slide Valve |
6231* |
| Socket Handle Wrench Set |
6250 |
| Packing Gland Gasket |
6642* |
| Optional Mufflers for 5352 Valve (2 req.) |
7334 |
| Rear Head Gasket |
7354* |
| Valve Chest Gasket |
7355* |
| Packing Gasket |
7765* |
| Air Cylinder Assy. Complete (hand trigger) |
5244-C1 |
| Air Cylinder Assy. Complete (auto trigger) |
5244-C2 |
