CERTIFIED
ACCURACY
Each "SureChuck" undergoes a
final comprehensive inspection, including a test for run-out. The results of this test are
stamped on the unit itself to ensure you of the accuracy required for precise grinding.
MAINTENANCE FREE
The "SureChuck" uses nylon bushings which never need
lubrication. Other than routine cleaning, the chuck is virtually maintenance free.
MATCH MARKS
Each "SureChuck" is marked at the spot tested for
greatest accuracy. Match the mark on your saws to the one on the chuck for increased
convenience and precision.
SIMPLE, DURABLE
DESIGN

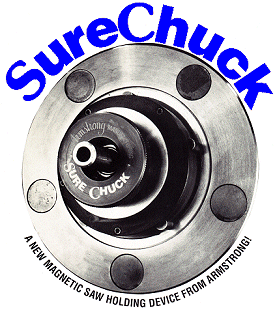

Armstrong "SureChucks" are constructed using cast
iron with inlaid ceramic magnets. The "fingers" are made of hardened investment
cast steel for years of wear.
A SIZE TO FIT
YOUR REQUIREMENTS
Armstrong "SureChucks" come in 5 standard sizes. If
you require different size other than those listed, give us a call. Wed be happy to
build one tailored to your specific needs. |
VERSATILE
The "SureChuck" fits on all
Armstrong circle saw sharpeners (with 7/8" mandrels*) as well as the AUTOPOINT,
AUTOTIP, and EQUALIZER. In addition, the "SureChuck" works with or without set
collars your choice.
*"SureChuck" to fit �" mandrel is optional.
PART NO. FOR:
| 11910-C1 |
No. 1 splined eye
(or unsplined saw, 3-7/8" to 4-1/8" ID) |
| 11910-C2 |
No. 2 splined eye
(or unsplined saw, 4-7/8 to 5-1/8" ID) |
| 11910-C3 |
No. 3 splined eye
(or unsplined saw, 5-7/8" to 6-1/8" ID) |
| 11910-C350 |
No. 3-1/2 splined eye
(or unsplined saw, 6-7/8" to 7-1/8" ID) |
| 11910-C4 |
No. 4 splined eye
(or unsplined saw, 7-7/8" to 8-1/8" ID) |

MANUFACTURING COMPANY
5504 S 11th St Ridgefield, WA 98642 USA
(503) 228-8381 Fax: (503) 228-8384
www.armstrongblue.com
|
