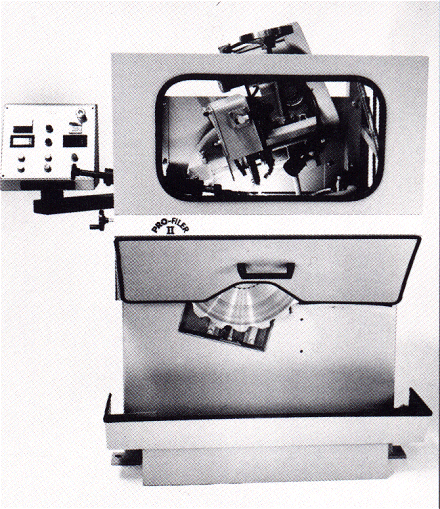

Armstrong's ProFiler II

The PRO-Filer II grinds the entire profile of Cobalt Chromium Alloy tipped and swaged tooth saws. In addition, it tops and faces carbide saws and grinds the gullets and notches between carbide retippings. The PRO-Filer II even sharpens variable tooth spaced saws.

Cobalt Chromium Alloy , Carbide, Swaged Tooth: All your circular rip saws can be sharpened better, faster and at a lower cost on the PRO-Filer II.

Armstrong’s new PRO-Filer II is truly the most versatile sharpener available today. Call your local stocking distributor/service center or Armstrong today for more details.

Versatile

The all-new PRO-Filer II full-flood circular saw grinder is the most versatile precision sharpener ever built for sawmills. It top and face grinds carbide tipped saws, profile grinds Cobalt Chromium Alloy tipped saws, gums gullets, grinds carbide notches and even sharpens variable tooth space saws.




MANUFACTURING COMPANY
  5504 S 11th St, Ridgefield, WA 98642 USA
(503) 228-8381  Fax: (503) 228-8384
www.armstrongblue.com


You Choose…

  • Vitrified, diamond*, or CBN* wheels or maybe your mill requires all three. It only takes a minute to change from one to another.
  • Conventional uniform tooth spaces or variable space/Hi-Earn saws to enhance cutting performance.
  • Grind fast, up to 24 teeth per minute for high production work on Cobalt Chromium Alloy or swaged tooth saws or slow down to a mere crawl to repair a single damaged tooth or grind both the faces and tops of carbide teeth in a single pass!
    •
Armstrong's ProFiler II


Accurate

The PRO-Filer II’s heavy-duty construction with "vibration-killing" cast iron ensures consistent accuracy for the sharpest saws. The unique saw advancing mechanism precisely positions each tooth regardless of saw diameter.

*Diamond or CBN wheels are optional.


Easy to Operate

Super-fast set-ups allow more work to be done every day. Tooth shapes can be changed in less than one minute. Change from topping and facing to full profile grinding is just as fast, and switch from one diameter saw to another in seconds.

A moveable console puts all the controls at the operator’s finger-tips, including digital monitors which display wheel speed and number of teeth being sharpened per minute. The micrometer adjustment of the amount of stock to be removed gives you instantaneous control of this important function and allows for alterations at any time, even during the grinding cycle.



 With the PRO-Filer II You Get:
  • A Multi-Functional Sharpener to handle any type of cutting edge: Cobalt Chromium Alloy or carbide tipped, and swaged tooth!
  • A Profile grinder that also Tops and Faces, and grinds the gullets and notches of carbide saws before retippings.
  • Precision Grinding Wheel Arbor with variable speed motor, flat belt drive and "zero-end-play" bearings for vibration-free grinding.
  • A Mircro-Finish on the Cutting Edge and Entire Tooth Profile to hold the keen edge longer; corners will not chip due to grinding heat.
  • Reduced Saw Maintenance Costs from more resharpenings after each swaging or tipping.
  • Enhanced Productivity from a machine able to resharpen each tooth in a single pass: grind the entire profile, sharpen just the faces, or grind both the tops and faces in a single pass.
  • Full "Lift Off" of the optional diamond grinding wheel from the faces of carbide teeth for the sharpest possible cutting edge.
  • Built-in Wheel Dressing/Truing System for a surface finish and cutting edge sharpness with conventional wheels that rivals the finish achieved with CBN wheel… but at a fraction of the cost.
  • Reliable Speed and Accuracy year after year. Built "Armstrong" tough," the PRO-Filer II is made with massive steel and cast iron components, flat belt drive and precision bearings.
  • And More!…Full-flood Cooling, Two-stage Power Clamp, Powered Saw Lift, Rigid Saw Mandrel, 2 pair of CNC-Generated cams for precision face/top grinding and profile grinding, Automatic "Park," and SideWinder style carbide feed finger.
    •
