No. 70 Side Grinder for Heavy-Duty Side
Grinding of Carbide Tips and Strob Saw Inserts
|
No. 64 Side Grinder For Light-Duty Side
Grinding of Carbide Circular Saws 6" to 48"
MANUFACTURING COMPANY
5504 S 11th St, Ridgefield, WA 98642 USA
(503) 228-8381 Fax: (503) 228-8384
www.armstrongblue.com
|
Armstrong
Precision Equipment
For Carbide Saw Sharpening and Repair
|

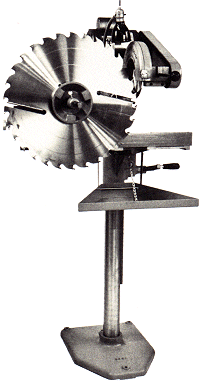

No. 54-C Hand Sharpener:
Carbide filers choose Armstrongs No. 54-C hand sharpener for
topping and facing a complete range of circle saws. The No. 54-C accommodates saws from
6" to 48" in diameter and offers precision sharpening at a very economical
price. From large mills to small saw shops, the 54-C provides filers with versatile,
efficient way to care of their carbide saws.
Armstrongs No. 54-C is perfectly suited for the sizes and
quantities of saw typical of smaller mills and saw shops. Its quick to set up, easy
to operate and precisely sharpens a full range of saws. Affordably priced, the 54-Cs
solid, cast iron and steel construction ensures many years of dependable service with
minimal maintenance.
For larger mills, caring for a higher quantity of saws, the No. 54-C is
ideal for repair work, touch-up jobs, and as a back-up sharpener. Saw repair is done
quickly and efficiently, freeing time on the larger, automatic sharpeners for more routine
saw care.
- VERSATILITY
Capable of grinding the tops and
faces of carbide tipped saws from 6" to 48" in diameter. Alternating bevels on
faces and tops can also be quickly and evenly ground. Even carbide tipped cut-off saws up
to 60" can be face ground (up to 72" if the saw is lowered by special request.)
- ACCURACY
The 54-C produces precise, uniform saw
teeth time after time. Accuracy is ensured through proven design, heavy-duty construction
and careful attention to every detail during the manufacturing process.
|
- QUICK AND EASY TO SET UP
Manual operation means there are
fewer set-ups and adjustments to make. The grinding wheel and saw are easily adjusted for
just the right top and hook angles. A micrometer hand wheel is used to quickly set the
depth of cut.
- SOLID CONSTRUCTION
Rugged cast iron and steel
construction ensures many years of dependable service with minimum maintenance. The No.
54-C comes equipped with a 1 h.p. motor for fast, uniform grinding of precision edged saws
or heavy slasher saws.
- GRINDS CARBIDE, STEEL OR Cobalt Chromium Alloy
Quick change grinding wheel arbors
accommodate diamond or CBN wheels with 1 �" bores or resinoid wheels up to 10"
with �" bore.
NO. 54-C FEATURES:
- WET GRINDING
Convenient drip pan is available
for wet grinding. Optional coolant pump is easily attached.
- INDEXING
A spring loaded tooth stop is
included for indexing teeth to maintain a uniform top clearance angle.
- QUICK CONE
Quick mount saw centering cones
lock the saw securely in place. Ball bearing centering bushes are also available as an
option for added precision.
- FIRM SAW SUPPORT
Saw support is enhanced through the
use of spring loaded bronze saw rests which brace the saw for precision grinding.
- OPTIONAL STROB ATTACHMENT
A saw offset attachment is
available for easy, accurate facing of strob saw inserts.
- SUPPORTED BY ARMSTRONG AND A TEAM OF STOCKING DISTRIBUTOR/SERVICE CENTERS
As with all Armstrong tools and
machines, the No. 54-C is fully guaranteed by Armstrong and serviced through a network of
local distributors.
|
|
Armstrong
Precision Equipment
For Carbide Saw Sharpening and Repair
|
No. 64 Side Grinder: Armstrongs
No. 64 side grinder is a compact, light-duty grinder for carbide tipped saws. Two models
are available: the No. 64-30 for circular saws up to 48" in diameter.
Side grinding
replacement tips is accomplished quickly and easily on the No. 64. This low-cost, portable
grinder requires minimal set-up with only two quick adjustments needed to set clearance
angles. The No. 64 is built for precision, yet simple in design, with a minimum number of
parts for easy maintenance.
- ACCURATE,
ECONOMICAL GRINDING
Especially well adapted for light-duty side grinding, the No.
64 offers precision side grinding at a minimal cost.
- SIMPLE TO OPERATE
Only two adjustments are needed to set the exact clearance
angles desired. The micrometer control hand wheel is marked in thousandths for precise
control of the depth of cut.
- COMPACT
This bench model grinder requires only a small
amount of space and can easily be moved out of the way when not in use.
- PROVEN DESIGN
Cast iron parts are used for durability and longevity. A
minimum number of parts makes the No. 64 easy to operate and easy to maintain.
- SAW CENTERING
The No. 64 uses the same centering cone as the No. 54-C for
quick and easy centering of the saw.
- DIAMOND GRINDING WHEEL
The flaring cup diamond wheel sharpens both coarse and fine
teeth. The same flat dish diamond wheel used on the No. 54-C can also be used if desired
on coarse teeth.
|
No. 70 Side Grinder: Armstrongs
No. 70 grinder accurately side grinds carbide tipped saws as well as the sides of Strob
saw inserts. Used in combination with Armstrongs No. 54-C, the two provide a
complete carbide sharpening set-up for a wide range of circle saws. The No. 70 is a
sturdy, heavy-duty machine, built for years of accurate, reliable service. Many features
are offered by the No. 70 Side Grinder to ensure precision grinding and ease of use,
including:
- STROB SAW INSERTS
Smooth movement of the saw table on V-tracks and ball bearing rollers allows travel to 11
�" making it possible to side grind even the longest Strob saw inserts.
- EASY TO OPERATE
Convenient hand lever adjusts to the desired length of stroke. Speed is controlled by the
operator.
- EASY TO ADJUST
Angle adjustments are exact and simple to make. The radial angle bars, located at the end
of the saw bar, can be positioned for 0� to 5� settings. The tangential angle is positively set using two studs
which control the grinding wheel. The adjustable studs are preset at the factory for 2� . If more or less angle is preferred, please specify when
ordering.
- PRECISION GRINDING
The diamond grinding wheel is mounted on a heavy-duty bearing quill. Markings on the hand
wheel indicate .003" of grinding wheel travel for precise material removal.
- POWER AND RELIABILITY
One full h.p. guarantees smooth operation, even during heavy grinding. Rugged, heavy-duty
construction ensures many years of reliable service.
|
OPTIONAL 64-L SIDE GRINDER
For Grinding Large Cut-Off Saws in Place! Large cut-off saws are often difficult to remove
and transport to the filing room for sharpening. The portable 64-L side grinder is
specially adapted to grind both the top and face of these large saws on location. Contact
Armstrong or your local distributor for details. |
|
Armstrong
Precision Equipment
For Carbide Saw Sharpening and Repair
|
Brazing Tables:
Armstrong brazing tables are
stocked in two sizes: one for circular saws up to 18" in diameter and a second for
saws up to 28" in diameter. (Additional sizes can be special ordered at extra cost.)
Both bench type and floor model with sturdy, "lazy-susan" base are available.
|
CARBIDE SAW DIAL
GAUGE
Armstrong offers an excellent gauge for measuring side clearance and checking angles on
carbide saw teeth. This accurate and easy-to-read gauge is available from stock by
ordering part no. 7959. |
|
BRAZING TABLES FEATURE:
- HEAVY-DUTY CONSTRUCTION
Heavy-duty, precision ground steel plate holds the saw in place while carbide tips are
brazed on to the saw teeth.
- ACCURATE CENTERING
Armstrong brazing tables provide a centering
shaft for the quick centering cone (optional) to accurately position the saw on the table.
- EASY ADJUSTMENT FOR CLEARANCE
The exact amount of clearance
needed to mount the tips on the blade is easily adjusted with 3 set screws.
|
NO. 54-C ARMSTRONG CIRCULAR CARBIDE SAW SHARPENER
Each machine includes pulleys, belt,
lamp, one saw carriage, and saw centering quick cone. Furnished motor driven only, motor
and starting equipment for standard alternating current. Grinding wheel and coolant drip
pan supplied as optional equipment at extra cost. |
CAPACITY:
(Diameter of saw) |
Maximum |
Minimum |
With saw carriage No. 6035 for
saw eyes �" to 2 �" |
48" |
6" |
With saw carriage No. 6038 for
saw eyes 7/8" to 4 �" |
60" |
6" |
With saw carriage No. 6044 for
saw eyes 7/8" to 6" |
60" |
7-1/2" |
With saw carriage No. 6417 for
saw eyes 7/8" to 8" |
48" |
10" |
With saw carriage No. 6427 for
saw eyes 7/8" to 9 �" |
48" |
11 �" |
QUICK CONES (Saw
Centering) FOR SAW EYES Plain: |
Part No. 6401 �"
bore |
2 �" |
�" |
Part No. 6410 7/8"
bore |
2 �" |
7/8" |
Part No. 6411 7/8"
bore |
4 �" |
2 �" |
Part No. 6423 7/8"
bore |
6 �" |
4 �" |
Part No. 6424 7/8"
bore |
8" |
6 �" |
Part No. 6428 7/8"
bore |
9 �" |
8" |
MANUFACTURING COMPANY
5504 S 11th St, Ridgefield, WA 98642 USA
(503) 228-8381 Fax: (503) 228-8384
www.armstrongblue.com
|
BALL BEARING:
(supplied as optional equipment at extra cost.) |
Part No. 8763-C 7/8"
bore |
7 �" |
3 �" |
Part No. 5630-B 7/8"
bore |
7 �" |
3 �" |
Specify
size saw eye. Each bushing made for one size saw eye only. Larger sizes made
special upon request. |
GRINDING WHEEL: (Flat dish diamond) |
Speed
R.P.M. |
3600 |
Diameter |
6"-10" |
Thickness |
�" |
Bore |
1
�" |
DUST
PIPE: |
Size |
3" |
MOTOR: |
Size |
1
H.P. |
Speed |
1725
R.P.M. |
MACHINE: |
Floor
Space |
24"
Wide X 38" Long |
Height |
70" |
Truck
Weight Crated |
425
lbs. approx. |
Ocean
Weight Crated |
440
lbs. approx. |
Cubic Ft.
Ocean Crated |
34
approx. |
|
Armstrong Precision Equipment
For Carbide Saw Sharpening and Repair
|
NO. 70 HEAVY DUTY ARMSTRONG CIRCULAR CARBIDE SAW SIDE GRINDER
Each machine includes pulleys, belt, one saw carriage and saw
centering quick cone. Furnished motor driven only, with motor and reversing motor driven
only, with motor and reversing drum switch for standard alternating current. Tooth stop
assemblies for both Strob teeth and cutting teeth included. Grinding wheel supplied as
optional equipment at extra cost.
|
CAPACITY: (Diameter of saw) |
Maximum |
Minimum |
With saw carriage No. 6518 for
saws with eyes �" to 2 �" |
36" |
6" |
With saw carriage No. 8025 for
saws with 7/8" to 4 �" eyes |
36" |
6" |
With saw carriage No. 6426 for
saws with 7/8" to 9 �" eyes |
36" |
10" |
With saw carriage No. 6429 for
saws with 7/8" to 9 �" eyes |
36" |
11" |
QUICK CONES (Saw
Centering) Plain: |
Part No. 6401 �"
Bore |
2 �" |
�" |
Part No. 6410 7/8"
Bore |
2 �" |
7/8" |
Part No. 6411 7/8"
Bore |
4 �" |
2 �" |
Part No. 6423 7/8"
Bore |
6 �" |
4 �" |
Part No. 6424 7/8"
Bore |
8" |
6 �" |
Part No. 6428 7/8"
Bore |
9 �" |
8" |
Ball Bearing Cones
supplied as optional equipment at extra cost, as shown for 54-C Sharpener. Larger sizes
available at extra cost. |
|
GRINDING WHEEL: (Flaring Cup
Diamond)
|
Speed R.P.M. |
3450 |
Diameter |
3 �"
O.D. |
Depths |
1 �" |
Bore |
1 �" |
MOTOR: |
Size |
1 H.P. |
Speed |
1725 R.P.M. |
MACHINE: |
Floor Space |
25 �"
X 53 �" |
Overall Height |
58 �" |
Height to Saw Blade |
42 �" |
Truck Weight, Crated |
950 lbs. |
Ocean Weight, Boxed |
1000 lbs. |
Cubic Measurement, Boxed |
62 cu. ft. |
|
NO. 64 ARMSTRONG CARBIDE SAW SIDE GRINDER
Each machine includes lamp, one saw carriage and one saw
centering quick cone. Furnished motor driven only, with motor and starting equipment for
115 volt, single phase, 60 cycle current. Grinding wheel and coolant drip pan supplied as
optional equipment at extra cost.
|
CAPACITY:
(Diameter of Saw) |
No.
64-30 |
No.
64-68 |
Max. |
Min. |
Max. |
Min. |
With saw carriage No.
6418 for saws with eyes �" to 2 �" |
30" |
6" |
48" |
6" |
With saw carriage No.
8025 for saws with eyes 7/8" to 4 �" |
30" |
6" |
48" |
6" |
With saw carriage No.
6426 7/8" to 9 �" |
30" |
10" |
48" |
6" |
QUICK
CONES (Saw Centering)
Plain: |
Part No. 6401
�" bore |
2 �" |
�" |
Part No. 6410
7/8" bore |
|
|
Part No. 6411
7/8" bore |
4 �" |
7/8" |
Part No. 6423
7/8" bore |
6 �" |
4 �" |
Part No. 6424
7/8" bore |
8" |
6 �" |
Part No. 6428
7/8" bore |
9 �" |
8" |
GRINDING
WHEEL: (Flaring cup diamond) |
Speed R.P.M. |
3450 |
Diameter |
3 �" O.D. |
Depth |
1 �" |
Bore |
1 �" |
(Flat
dish diamond wheel is listed for No. 54-C Sharpener can be used if desired on coarse tooth
saws.) |
|
MOTOR:
115V, Single Phase, 60 Cycle |
Size |
� H.P. |
Speed |
3450 R.P.M. |
MACHINE: |
No. 64-30 |
No.
64-48 |
Bench Space |
15" X 36" |
15"
X 54" |
Height |
18" |
18" |
Truck Weight, Crated |
125 lbs. |
155
lbs. |
Ocean Weight, Crated |
135 lbs. |
165
lbs. |
Cubic Measurement,
Boxed |
7 cu. ft. |
9
cu. ft. |
CARBIDE
SAW BRAZING TABLES: |
|
Bench Model |
Floor Model |
Saw Diameter |
6" to
18" |
6" to
18" |
Larger sizes
available at extra cost. |
Table Thickness |
1" |
1" |
Overall Height |
8" |
36" |
Floor Space |
20" X
20" |
20" X
20" |
Truck Weight, Crated |
110 lbs. |
120 lbs. |
Ocean Weight, Crated |
120 lbs. |
130 lbs. |
Cubic Measurement,
Boxed |
4 cu. ft. |
6 cu. ft. |
Quick
cone 6401 for saw eyes �" to 2 �" eye supplied with No. 54-C Armstrong
Sharpener and No. 64 Side Grinder fits these brazing tables. Quick cones can be supplied
as optional equipment if desired. Centering plates for saws with eyes larger than 2
�" can also be supplied at extra cost. |
|
|
|
