Armstrong Filing Clamps for Band and Gang Saws

58-B-60 Band Saw Filing Clamp with 60" Jaws

Armstrong filing clamps incorporate rigid, solid steel construction to guarantee durability and longevity in the filing room


Filing Clamps for Band and Gang Saws

Armstrong offers filing clamps to accommodate a complete range of band and sash gang saws. The Model 58-B-60 is a single height filing clamp, specifically designed to handle band saws over 10" wide and/or longer than 34’. Armstrong’s 58-B-32 offers adjustable height control for smaller bands. For gang saws, the 58-G is quickly adjusted to match the width and then locked into position.

The convenient clamping handle opens the jaws wide for easy loading and unloading. The jaw is counter-balanced by a coil spring for smooth handling. Clamping pressures is controlled by the operator. The clamping handle is used to positively set the jaws to the exact "tightness" desired.

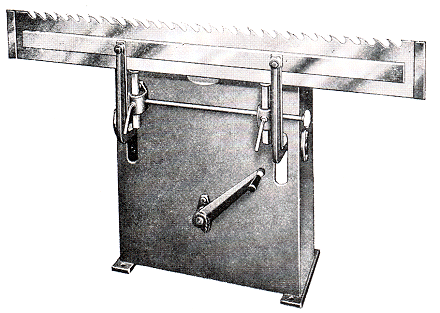

58-G Gang Saw Filing Clamp





MANUFACTURING COMPANY
 5504 S 11th St, Ridgefield, WA 98642 USA
(503) 228-8381  Fax: (503) 228-8384
www.armstrongblue.com
Armstrong Filing Clamps for Band and Gang Saws


Armstrong filing clamps incorporate rigid, solid steel construction to guarantee durability and longevity in the filing room. The latest design includes a tool shelf to keep the tools you use most, easily accessible. Smooth, straight jaws provide:

  • lateral support to the saw during swaging and shaping.
  • a well-clamped area for measuring slide clearance.
  • assistance in lining up the saw teeth going into a profile grinder, side grinder or automatic swager.

ORDERING INFORMATION:

Armstrong filing clamps can be ordered through your local stocking distributor/service center or direct from the factory.

  • For No. 58-B-32 filing clamp,
    order part no. 6350-C32.
  • For No. 58-B-60 filing clamp,
    order part no. 6350-C60.
  • For No. 58-G filing clamp,
    order part no. 6376.
    (Please specify length of saw between tabs.)







58-B-32 Band Saw Filing Clamp with 32" Jaws

FILING CLAMP SPECIFICATIONS:

SPECIFICATIONS

FOR BAND SAWS
No. 58-B-32

FOR BAND SAWS
No. 58-B-60

FOR GANG SAWS
No. 58-G
Max. Saw Width

10"

16"

10"
Jaw Length

32"

60"

According to length of saw between tabs
Height

Adjustable to 40", 41", 42"

38 �"

38 �"
Floor Space

18 �" x 32"

18 �" x 60"

18 �" x 72" max.
Weight-Truck

280 lbs.

335 lbs.

350 lbs.
Weight- Ocean

330 lbs.

385 lbs.

400 lbs.
Export Box

34" x 24" x 42"
39 cu. ft.

62" x 24" x 42"
59 cu. ft.

(varies)
