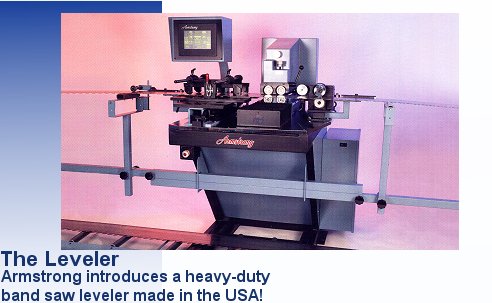

The heavy duty Armstrong leveler rolls saws up to 16" wide and 65 ft long at 50 ft per minute.  A built in memory recalls the settings for up to six different saws.
Non-contact Sensor
"Reads" lumps and dish right through any dirt or pitch on the saw. There is no roller to wear out.
Levels from Inside of Saw
Saws are flatter with respect to wheels and guides. Any variation in plate thickness is leveled to the outside of the saw plate.
Saw Tracker Software
Information can be downloaded to your personal computer for further analysis. Confirms the quality of the saws before, during and after leveling.
Touch Screen Control
Controls all the functions of the Leveler and gives the operator information about the condition of the saws.  Rolls saws up to 50 feet per minute. Saw does not stop when rolls shift to a new track.
Built-in Memory
Allows the filer to pre-set leveling parameters for up to six saws.


MANUFACTURING COMPANY
 5504 S 11th St, Ridgefield, WA 98642 USA
(503) 228-8381  Fax: (503) 228-8384
www.armstrongblue.com

 Made in the USA
Spare parts and service are readily available through your local Armstrong Stocking Distributor/Service Center.
Set-up Gauge Supplied
Set-ups are faster and more accurate.
High Speed Rolling Action
Rolls saws up to 50 feet per minute.  Saw does not stop when rolls shift to a new track.



Settings are made through a touch screen control panel. A built-in memory recalls the setting for up to six different saws.  The optional Windows-based Saw Tracker software downloads information to a personal computer for further analysis of saw performance.
Armstrong Automatic Band Saw Leveler
Two-stage Leveling Cylinders

Apply more pressure to sections of the saw that are badly out-of-level and a lighter pressure to areas of the saw that are only slightly out-of-level.
Level_Head.jpg (6023 bytes) The hold-down gate hinges up for easy saw loading. Note the six spring loaded wheels that hold the saw against the carbide rails.

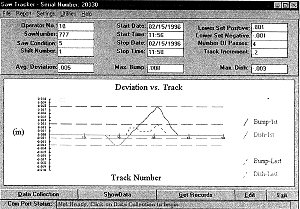

The optional Windows-based Saw Tracker software downloads information to a personal computer for further analysis of saw performance.
Saw Tracker
The optional Saw Tracker software downloads this data from the sensor and screen through a computer for further tracking and analysis of the saw conditions.  Saw Tracker confirms the quality of the saws before, during and after leveling.

Hardware required to support Saw Tracker software:

• 386SX25 PC or higher with 8 MB RAM minimum
• 2 serial ports
• Mouse
• Windows 3.1 or Windows for Work Groups 3.11
• VGA color monitor
• An RS-232 cable 25 feet long is supplied with the

Saw Tracker software. A shielded RS-232 cable must be supplied by the user if the computer is to be located more than 25 feet from the Armstrong Leveler.



Specifications
  • Saw length:
    65 ft maximum to 20 ft minimum
    (14 ft minimum saws with optional adapter)
  • Saw width:
    16" maximum to 3" minimum
    (5" minimum for double cut)
  • Rolling speed:
    50 feet per minute
  • Net Weight:
    1500 lbs.
  • Utilities:
    110 volts and 2 cubic ft of air/min at 50 PSI
  • Dimensions:
    65" deep x 72" high
All specifications and features subject to change.
